SPECIFICATIONS

Brand Name: Coswall

Certification: ce,ROHS

Color: Black/White/Grey/Gold

Current: 16a

EU LVD Voltage: High voltage: Above 50Vac or 75Vdc

Fan: 300W(Max)

Features: X99 series light switch+knob fan controller

High-concerned chemical: None

Installation distance: 60mm

Is Smart Device: Yes

Item Type: SWITCHES

Material: Glass

Material of Knob cover: glass

Material of panel: Glass panel

Model Number: X99-G-kbFan-1g-ZG-LN-11

Origin: Mainland China

Place of Origin: WenZhou China(Mainland)

Rated Power: LED/300W(MAX)

Rated Voltage: 100-250V, 50-60Hz

Resistance load: 600W

Size of Panel: 86mm*86mm

Smart home platform: Tuya

Switch Type: Knob switch

Use For: Lighting

Warranty: 2 year

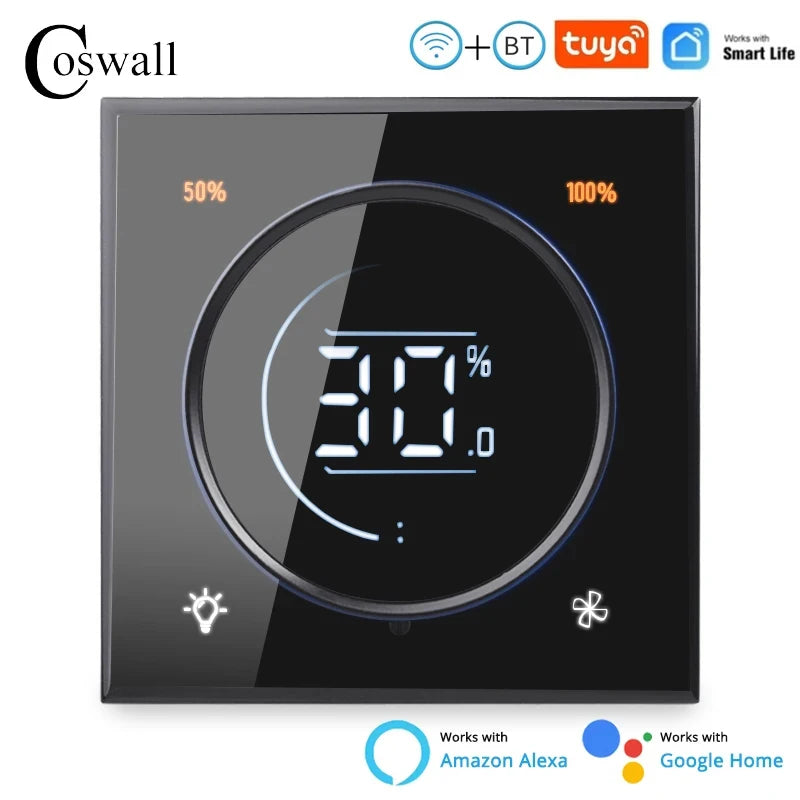

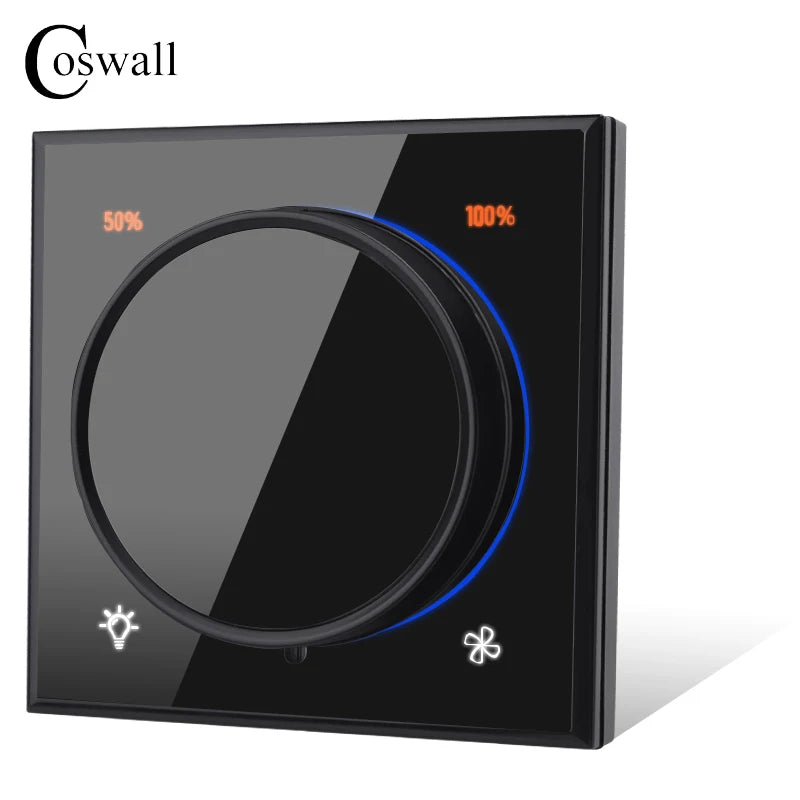

Name: X99 series light switch+knob fan controller

Knob regulator function: 1, used alone for lamp switch; 2. Fan regulator

Color: Black/White/Grey/Gold

Material of Switch Key Cover: Glass Surface(also could make Plastic Baking Paint/metal cover, if need other material cover, please feel free to contact us )

Material of Knob Cover: Glass

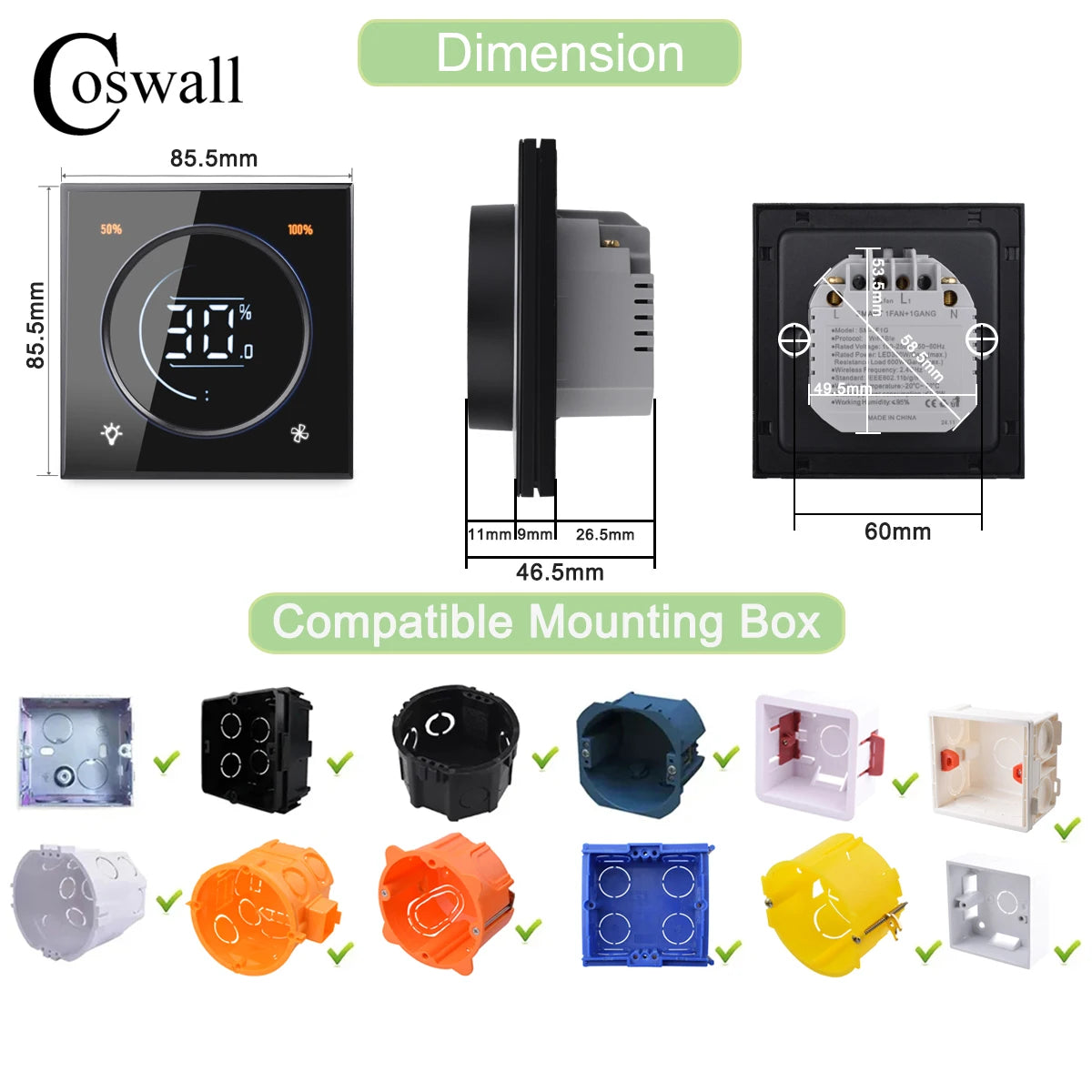

Size: 86*86*36mm

Installation distance between two screws from backside: 60mm

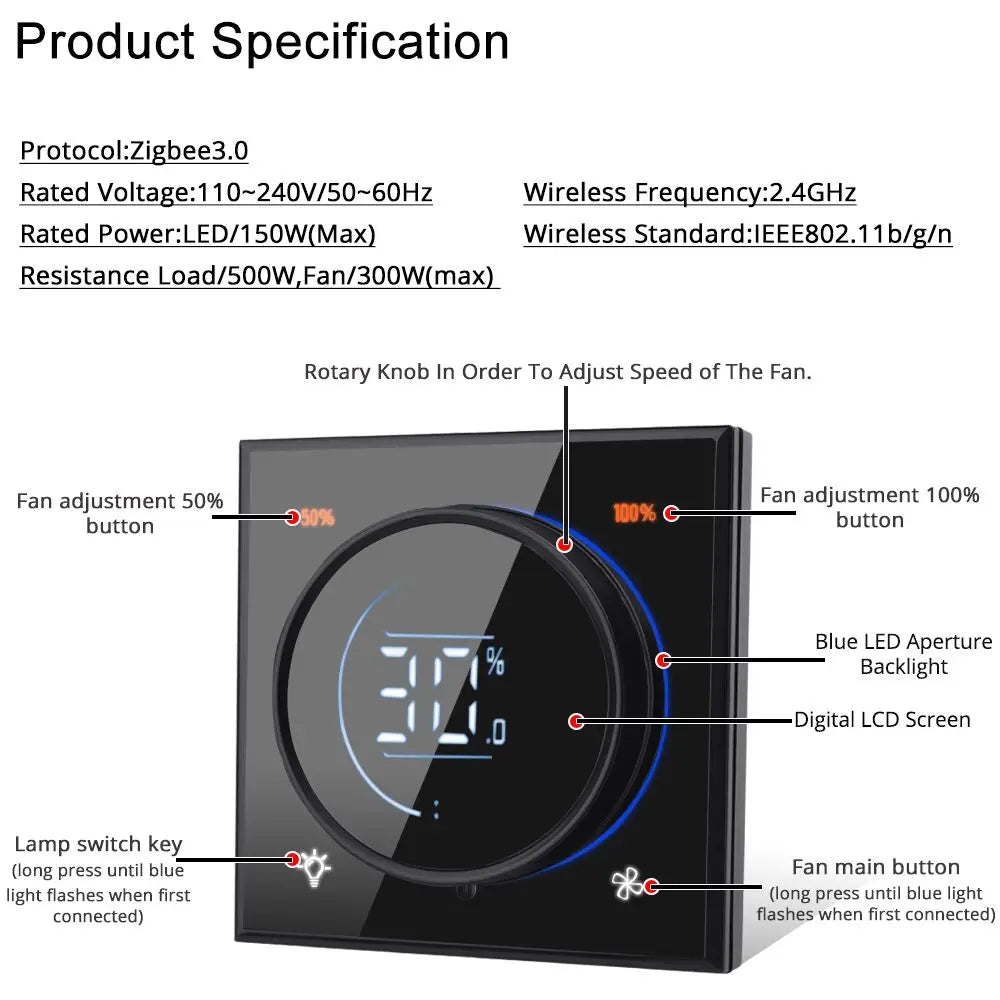

Protocol: Zigbee 3.0 / WIFI

Rated Voltage: AC 110-250V/50~60Hz

Rated Power: LED/150W(Max.), Resistance load/500W,Fan/300W(Max.)

Wireless Frequency: 2.4GHz

Wireless Standard: IEEE802.11b/g/n

Control Method: Press key/ Knob/APP/Voice

Supported APP：Tuya/Smart Life

Supported Smart Speaker: Amazon Alexa/Google Home/ and so on

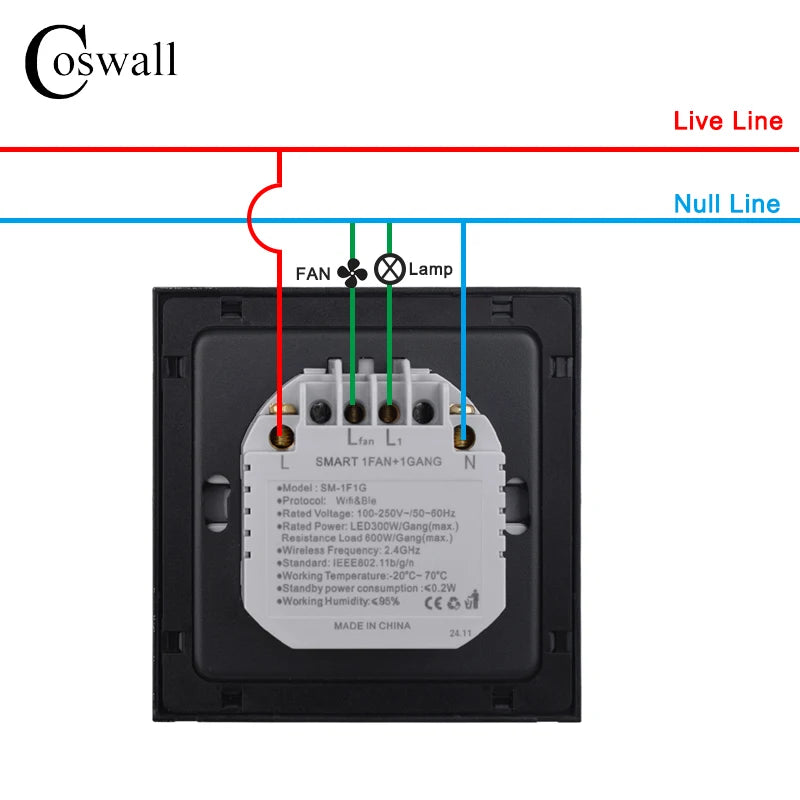

Neutral Wire Required Or Not: yes

Matching Mounting Box:could fit into round box and square box.
